Paper Cup Lid Making Machine

HGHY Paper Cup Lid Making Machine are specialized equipment used to produce eco-friendly, biodegradable packaging solutions from pulp materials. These machines utilize heat and pressure to mold pulp into various shapes and sizes, creating sturdy, environmentally sustainable packaging products such as trays, clamshells, plates, and containers. Pulp thermoforming is widely used in the food industry, electronics, consumer goods, and more.

Daily Capacity: 100,000 Pieces ±10% (Base On 80 / 90 mm Cup Lid, Punch Slurry Suction)

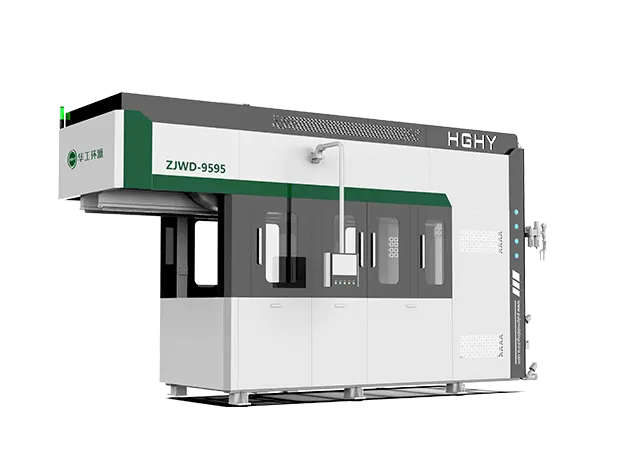

Paper Cup Lid Making Machine
Reciprocating Technology

Undercut design, negative angle available

Other Production Line Options:
Thermoforming High-end Package Making Machine
Paper Cup Lid Making Machine
Tableware Making Machine
Product - Paper Lid Making Machine

Small draft angle production for high quality eco-friendly molded fiber packaging. Suitable for the production of pulp molded cup lid, 3C digital products, cultural and creative products, high-end gift boxes and other exquisite high-grade lining or outer packaging products.

Paper Cup Lid Raw materials: Utilize renewable plant fiber resources such as bagasse, wheat straw, reed, moso bamboo and other plant fibers.

Production of Eco-Friendly Molded Fiber Packaging with Small Draft Angles: Our process allows for the creation of high-quality, eco-friendly molded fiber packaging with a draft angle of at least 0.5 degrees and radii of at least 0.3 mm. The prepress system is equipped to handle negative angles, ensuring high precision and positioning accuracy. This makes it easy to control and ensures stable operation, meeting the requirements of various types of packaging, including high-end products.

Multiple Applications : Beverage Cup Lid、3C Digital Product Packaging、Cultural and Creative Products、High-end Gift Box Packaging、Cosmetic Packaging、Wine Bottle Packaging、Instrument Packaging、Medical Device Packaging、Furniture Packaging、Milk Powder Spoong

HGHY Paper Cup Lid 01
HGHY Paper Cup Lid 02
HGHY Paper Cup Lid 03
HGHY Paper Cup Lid 04

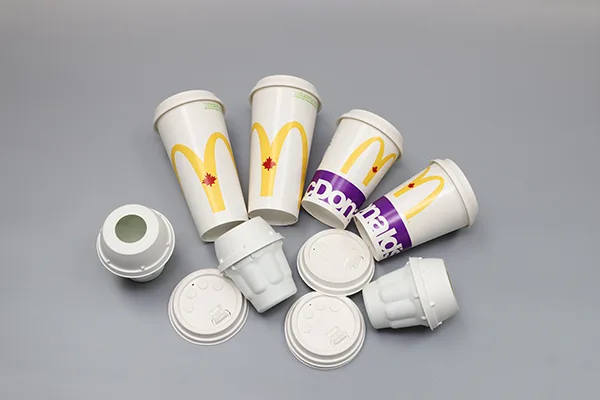

HGHY Paper Cup Lid 05

Main Features

  • High precision and stability
  • Capable of producing cup lids with angles less than 0 degrees (i.e., upside down) without the need for edge hooping
  • Integrated forming and hot pressing design
  • Combined trimming and punching process, ensuring low cost despite a high production line stalling rate
  • Achieves a demolding angle of 0 degrees with an R0.3 for IP packaging

Technical Parameters

Working Process of Paper Cup Lid Making Machine

Process - High-end Packaging Machine
Pulping making system - High-end Packaging Machine

Pulping making system:

In the pulping process, different proportions of plant fiber pulp cardboards are first placed into the pulper, where water is added and the mixture is broken down. This mixture is then processed into a cotton-like fiber thick slurry using a deflaking machine and a refiner as needed. The slurry is then transferred to the pulp mixing tank by a pulp pump. Based on the performance requirements of the molded pulp product, appropriate amounts of additives and water are added to the pulp mixing tank in a specific order and stirred thoroughly to prepare the required pulp for molding. The prepared material is then transferred to the slurry supply tank, ready to be transported to the molding machine.

Forming system:

The forming die absorbs the slurry in the slurry pool to form a wet embryo. The upper die squeezes out the water for the first time and then moves the formed wet embryo to the hot pressing table for the second time. After hot pressing, the upper die absorbs the dried product and transfers it to the stacking table for manual quality inspection and then moves it to the automatic trimming machine. After trimming, the finished product is automatically stacked and counted, ready for final packaging.

Forming system - High-end Packaging Machine
Vacuum system - Robotic Tableware Making Machine

Vacuum system:

A vacuum system in a pulp molding line is essential for forming and dewatering processes, ensuring the efficient production of molded pulp products like Disposable paper tableware, high-end paper-plastic packaging, egg trays, fruit trays, and other packaging materials. This system involves several components that work together to create, maintain, and control the vacuum necessary for the pulp molding process.

Proper design, operation, and maintenance of the vacuum system are essential for optimal performance. Advances in automation, energy recovery, and sustainability are driving improvements in vacuum system technology, contributing to more efficient and environmentally friendly pulp molding operations.

Air-pressure system:

Air compression systems are vital in the pulp molding production line, providing the necessary compressed air for various functions such as powering pneumatic equipment, controlling valves, and assisting in the drying and demolding processes. These systems ensure that the production line operates efficiently, reliably, and safely.

Proper design, operation, and maintenance of the air compression system are essential for ensuring the efficiency, reliability, and safety of the production process. Advances in automation, energy efficiency, and sustainability are driving improvements in air compression technology, contributing to more efficient and environmentally friendly pulp molding operations.

Air-pressure system - Robotic Tableware Making Machine

Unique Features of Paper Cup Lid Making Machine

High Efficiency & High Return on Investment: Experience effortless operation with a fully automatic PLC control interface. Powered by a servo motor, our system ensures energy efficiency while delivering seamless performance. Benefit from two-stage hot press stations, enhancing both capacity and quality for high-end packaging needs. Maximize your return on investment with increased efficiency. Achieve a daily capacity ranging from 650 to 800 kg, depending on product specifications.

Advanced Technology & High Durability: In 2002, we pioneered high-end IP thermoforming technology, setting a new standard in efficiency and precision. Our innovative integrated host design maximizes functionality, while extra bolts ensure unparalleled robustness and durability, significantly extending equipment lifespan. Additionally, our compact footprint minimizes space requirements, making optimal use of available area.

Safe & Easy to Operate: Effortlessly controlled by a fully automatic PLC interface, our system ensures user-friendly operation. Additionally, our maintenance procedures are designed to be straightforward and easily understandable, facilitating clear and simple upkeep.

Why Choose HGHY Paper Cup Lid Making Machine

HGHY is China’s high-tech enterprise dedicated to the research, development, and manufacturing of paper molding equipment. Withnearly 30 years of hands-on experience in project operations, our aim is to construct top-tier machines. Our service network spans many countries and regions globally, with over 2,000 sets of equipment sold and more than 20,000 satisfied customers served.

why-choose-hghy-1

Personalized one-on-one consultation services for customers.

why-choose-hghy-2

Tailored private products

why-choose-hghy-3

Provision of comprehensive plant layout and planning

why-choose-hghy-4

On-site installation with door-to-door service - Our engineers will assist in installation and troubleshooting until the equipment operates smoothly

why-choose-hghy-5

Training for your staff and complimentary technical consultation services

why-choose-hghy-6

Lifetime service support for all devices

Our Clients from the World

HGHY is not only producing high-quality machines in China but also is able to export and install the machines all over the world. In past decades, HGHY has sold the egg tray plants to more than 70 countries across the 5 continents.

Asia: China, South Korea, Vietnam, Thailand, Philippines, Malaysia, Indonesia, India, Turkey, Iran, Saudi Arabia, Yemen, Kazakhstan, Uzbekistan, Turkmenistan, Iraq, Oman, Lebanon, Syria, Azerbaijan, Tajikistan, Israel, Jordan, UAE

Europe: United Kingdom, France, Denmark, Poland, Czech Republic, Hungary, Ukraine, Russia, Serbia, Slovakia, Belarus, Lithuania, Estonia, Bulgaria, Italy

Africa: Egypt, Libya, Algeria, Morocco, Tunisia, Mali, Sudan, Nigeria, Cameroon, Uganda, South Africa, Zimbabwe, Kenya, Ethiopia, Mauritius, Seychelles, Tanzania

North America: United States, Mexico

Central America: Honduras, Guatemala

Oceania: Australia, New Zealand, Fiji

South America: Colombia, Ecuador, Brazil, Argentina, Uruguay, Peru, Chile, Bolivia

learn more

Explore more support and services from HGHY and learn more about pulp molding equipment.

HGHY Pulp Forming Equipment Center

Pulp Forming Equipment Center

HGHY has all types of pulp molding equipment technologies and solutions.

Mould Production and Service

Mould Production and Service

Exquisite mold processing technology is a reliable guarantee for the quality of molded pulp products.

Equipment Operation Video

Equipment Operation Video

Learn more about the pulp forming process for molded pulp packaging.

Get in Touch

Regardless of whether you require general advice or specific support, we are happy to help you.

Are you interested in a product, need a consultation or would like to have a quote? Please use the form below for any other inquiries.

GET IN TOUCH

We are happy to help you.
Model ZJWD-9595Y
Product Application Coffee Cup Lid, Rigid Box, etc
Packagings with Critical Draft Angle, R Angle or Complicated Structure
Daily Capacity 100,000 Pieces ±10%
Machine Station Forming + Hotpress + Conveyer + Automatic Trimming
Platen Size 950 × 950 mm
Heating Energy Electricity / Thermal Oil
Forming Method Punch, Reciprocating（Max 10 Tons Pressure）
Hotpress Method / Pressure Hydraulic System / Max 60 Tons Pressure
Safety Protection Self-locking & Auto-stop Design
Max Product Height / Thickness 110 mm / 1 mm
