Premium Quality / Time-tested

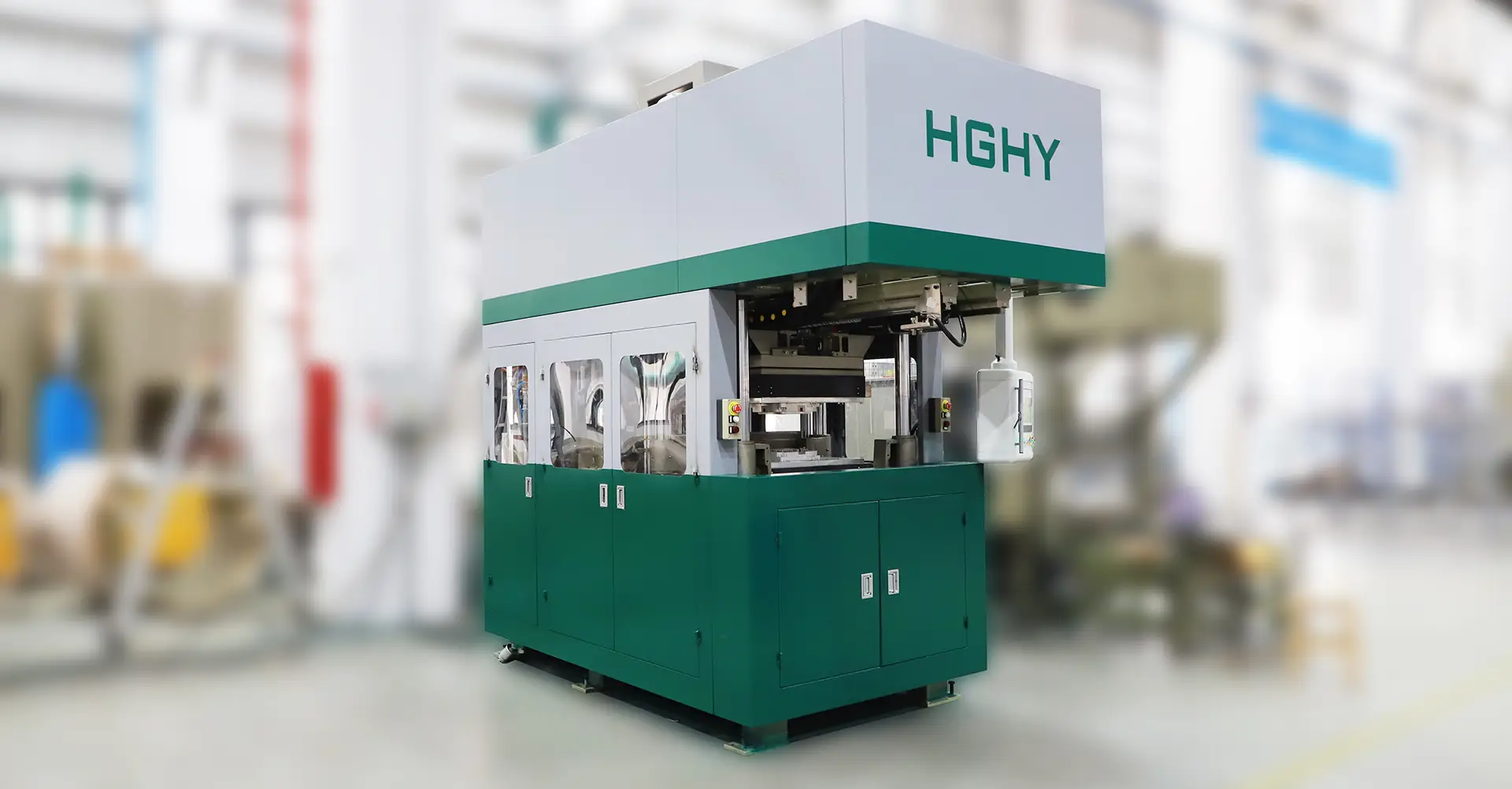

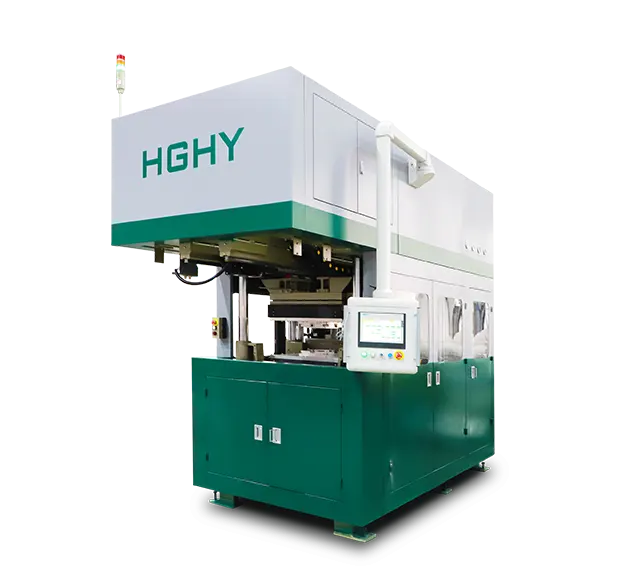

HIGH-END PACKAGING MACHINE ( Series Ⅱ )
This compact system boasts small footprint, cost-effectiveness, and high efficiency – tailor-made for manufacturing premium packaging, tableware, fresh food box, and beyond.
Daily Capacity: Base On Products
Reciprocating Technology
0° draft angle, small R angle
This machine is specially designed for new product development and mold testing. It features easy operation, flexible mold changes, and enables a fast, complete process from pulp injection to forming and demolding. Ideal for producing sample pieces of eco-friendly packaging such as food trays, electronic inserts, and more, it significantly enhances efficiency and precision during the R&D phase.
Raw materials: Utilize renewable plant fiber resources such as bagasse, wheat straw, reed, moso bamboo and other plant fibers.
Multiple Applications:
3C Digital Product Packaging、Cultural and Creative Products、High-end Gift Box Packaging、Furniture Packaging、Cosmetic Packaging、Wine Bottle Packaging、Instrument Packaging、Medical Device Packaging、Paper Cup lid、Milk Powder Spoong
Main Features
- Suitable for Small-Batch High-End Production
- Dual-Layer Structure for Easy Maintenance
- Compact Design with High Efficiency
- Small Mold Area for Quick Changeovers
Technical Parameters
Working Process of High-end Package Making Machine
Pulping making system:
In the pulping process, different proportions of plant fiber pulp cardboards are first placed into the pulper, where water is added and the mixture is broken down. This mixture is then processed into a cotton-like fiber thick slurry using a deflaking machine and a refiner as needed. The slurry is then transferred to the pulp mixing tank by a pulp pump. Based on the performance requirements of the molded pulp product, appropriate amounts of additives and water are added to the pulp mixing tank in a specific order and stirred thoroughly to prepare the required pulp for molding. The prepared material is then transferred to the slurry supply tank, ready to be transported to the molding machine.
Forming system:
The forming die absorbs the slurry in the slurry pool to form a wet embryo. The upper die squeezes out the water for the first time and then moves the formed wet embryo to the hot pressing table for the second time. After hot pressing, the upper die absorbs the dried product and transfers it to the stacking table for manual quality inspection and then moves it to the automatic trimming machine. After trimming, the finished product is automatically stacked and counted, ready for final packaging.
Vacuum system:
A vacuum system in a pulp molding line is essential for forming and dewatering processes, ensuring the efficient production of molded pulp products like Disposable paper tableware, high-end paper-plastic packaging, egg trays, fruit trays, and other packaging materials. This system involves several components that work together to create, maintain, and control the vacuum necessary for the pulp molding process.
Proper design, operation, and maintenance of the vacuum system are essential for optimal performance. Advances in automation, energy recovery, and sustainability are driving improvements in vacuum system technology, contributing to more efficient and environmentally friendly pulp molding operations.
Air-pressure system:
Air compression systems are vital in the pulp molding production line, providing the necessary compressed air for various functions such as powering pneumatic equipment, controlling valves, and assisting in the drying and demolding processes. These systems ensure that the production line operates efficiently, reliably, and safely.
Proper design, operation, and maintenance of the air compression system are essential for ensuring the efficiency, reliability, and safety of the production process. Advances in automation, energy efficiency, and sustainability are driving improvements in air compression technology, contributing to more efficient and environmentally friendly pulp molding operations.
Unique Features of High-end Package Making Machine
Suitable for Small-Batch High-End Production – Ideal for small-order high-end pulp molding products, perfect for market testing, new product development, or personalized customization.
Dual-Layer Structure for Easy Maintenance – The two-layer design simplifies maintenance, reduces downtime, and lowers operational costs.
Compact Design with High Efficiency – Small machine footprint, fast operation, and user-friendly controls enhance productivity and ease of use.
Small Mold Area for Quick Changeovers – The smaller mold size allows for easy replacement, enabling flexible production and rapid adaptation to different product designs.
Why Choose HGHY High-end Package Making Machine
HGHY is China’s high-tech enterprise dedicated to the research, development, and manufacturing of paper molding equipment. Withnearly 30 years of hands-on experience in project operations, our aim is to construct top-tier machines. Our service network spans many countries and regions globally, with over 2,000 sets of equipment sold and more than 20,000 satisfied customers served.
Personalized one-on-one consultation services for customers.
Tailored private products
Provision of comprehensive plant layout and planning
On-site installation with door-to-door service - Our engineers will assist in installation and troubleshooting until the equipment operates smoothly
Training for your staff and complimentary technical consultation services
Lifetime service support for all devices
Our Clients from the World
HGHY is not only producing high-quality machines in China but also is able to export and install the machines all over the world. In past decades, HGHY has sold the egg tray plants to more than 70 countries across the 5 continents.
Asia: China, South Korea, Vietnam, Thailand, Philippines, Malaysia, Indonesia, India, Turkey, Iran, Saudi Arabia, Yemen, Kazakhstan, Uzbekistan, Turkmenistan, Iraq, Oman, Lebanon, Syria, Azerbaijan, Tajikistan, Israel, Jordan, UAE
Europe: United Kingdom, France, Denmark, Poland, Czech Republic, Hungary, Ukraine, Russia, Serbia, Slovakia, Belarus, Lithuania, Estonia, Bulgaria, Italy
Africa: Egypt, Libya, Algeria, Morocco, Tunisia, Mali, Sudan, Nigeria, Cameroon, Uganda, South Africa, Zimbabwe, Kenya, Ethiopia, Mauritius, Seychelles, Tanzania
North America: United States, Mexico
Central America: Honduras, Guatemala
Oceania: Australia, New Zealand, Fiji
South America: Colombia, Ecuador, Brazil, Argentina, Uruguay, Peru, Chile, Bolivia
