Thermoforming High-end Package Making Machine
HGHY Thermoforming High-end Package Making Machine are specialized equipment used to produce eco-friendly, biodegradable packaging solutions from pulp materials. These machines utilize heat and pressure to mold pulp into various shapes and sizes, creating sturdy, environmentally sustainable packaging products such as trays, clamshells, plates, and containers. Pulp thermoforming is widely used in the food industry, electronics, consumer goods, and more.
Daily Capacity: Base On Products
Reciprocating Technology
0° draft angle, small R angle
The earliest to develop high end IP thermoforming and put into use in 2002. Suitable for the production of handicrafts, mobile phones, daily necessities, cosmetics, digital products and other exquisite high-grade lining or outer packaging products.
Raw materials: Utilize renewable plant fiber resources such as bagasse, wheat straw, reed, moso bamboo and other plant fibers.
Multiple Applications:
3C Digital Product Packaging、Cultural and Creative Products、High-end Gift Box Packaging、Furniture Packaging、Cosmetic Packaging、Wine Bottle Packaging、Instrument Packaging、Medical Device Packaging、Paper Cup lid、Milk Powder Spoong
Main Features
- High precision and stability;
- Integrated forming and hot pressing design;
- Offline automatic trimming;
- Capable of producing inverted cup lids (less than 0 degrees);
- Precise adjustment of position, pressure, and temperature;
- Suitable for various high-end packaging products.
Technical Parameters
Working Process of High-end Package Making Machine

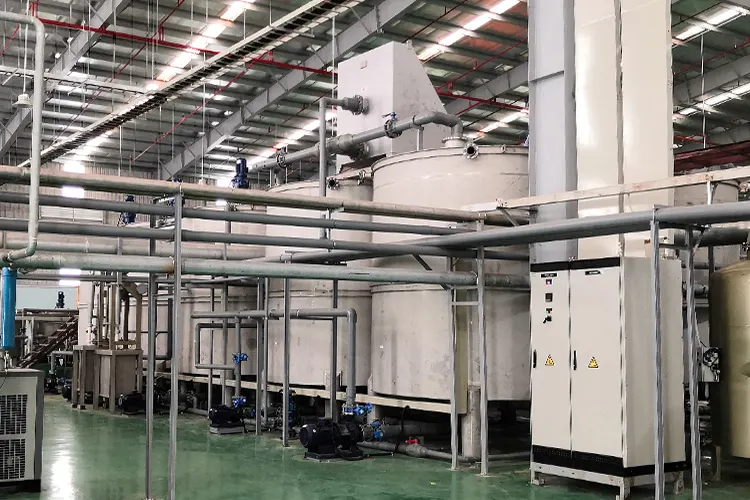

Pulping making system:
In the pulping process, different proportions of plant fiber pulp cardboards are first placed into the pulper, where water is added and the mixture is broken down. This mixture is then processed into a cotton-like fiber thick slurry using a deflaking machine and a refiner as needed. The slurry is then transferred to the pulp mixing tank by a pulp pump. Based on the performance requirements of the molded pulp product, appropriate amounts of additives and water are added to the pulp mixing tank in a specific order and stirred thoroughly to prepare the required pulp for molding. The prepared material is then transferred to the slurry supply tank, ready to be transported to the molding machine.
Forming system:
The forming die absorbs the slurry in the slurry pool to form a wet embryo. The upper die squeezes out the water for the first time and then moves the formed wet embryo to the hot pressing table for the second time. After hot pressing, the upper die absorbs the dried product and transfers it to the stacking table for manual quality inspection and then moves it to the automatic trimming machine. After trimming, the finished product is automatically stacked and counted, ready for final packaging.

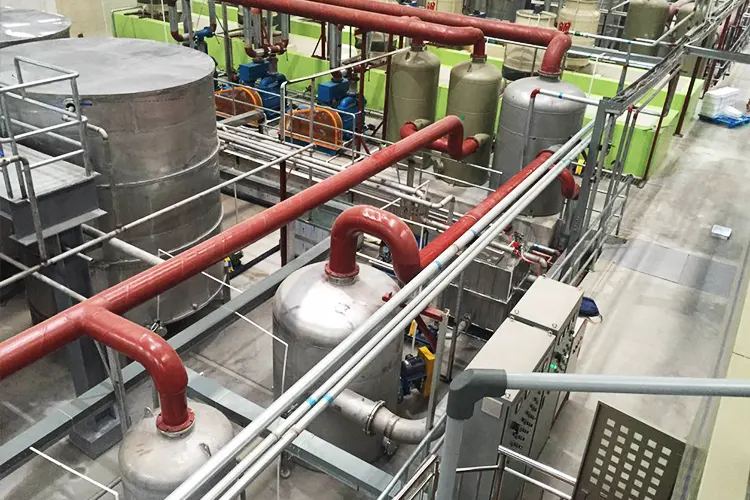

Vacuum system:
A vacuum system in a pulp molding line is essential for forming and dewatering processes, ensuring the efficient production of molded pulp products like Disposable paper tableware, high-end paper-plastic packaging, egg trays, fruit trays, and other packaging materials. This system involves several components that work together to create, maintain, and control the vacuum necessary for the pulp molding process.
Proper design, operation, and maintenance of the vacuum system are essential for optimal performance. Advances in automation, energy recovery, and sustainability are driving improvements in vacuum system technology, contributing to more efficient and environmentally friendly pulp molding operations.
Air-pressure system:
Air compression systems are vital in the pulp molding production line, providing the necessary compressed air for various functions such as powering pneumatic equipment, controlling valves, and assisting in the drying and demolding processes. These systems ensure that the production line operates efficiently, reliably, and safely.
Proper design, operation, and maintenance of the air compression system are essential for ensuring the efficiency, reliability, and safety of the production process. Advances in automation, energy efficiency, and sustainability are driving improvements in air compression technology, contributing to more efficient and environmentally friendly pulp molding operations.
Unique Features of High-end Package Making Machine
Rapid Mold Change:Production of high-quality, eco-friendly molded fiber packaging with a small draft angle. Features include a draft angle of ≥0.5 degrees and a radius of ≥0.3. The prepress is equipped for negative angles. The system offers high precision, accurate positioning, easy control, and stable operation. It is suitable for a variety of packaging types and high-end products.
High Efficiency This system features a fully automatic PLC control screen that is easy to operate. It is driven by a servo motor, which enhances energy efficiency. The two-stage hot press stations improve both capacity and quality for high-end packaging. With a higher rate of return on investment, the daily production capacity ranges from 650 to 800 kg, depending on the product.
Why Choose HGHY High-end Package Making Machine
HGHY is China’s high-tech enterprise dedicated to the research, development, and manufacturing of paper molding equipment. Withnearly 30 years of hands-on experience in project operations, our aim is to construct top-tier machines. Our service network spans over 60 countries and regions globally, with over 2,000 sets of equipment sold and more than 10,000 satisfied customers served.
Personalized one-on-one consultation services for customers.
Tailored private products
Provision of comprehensive plant layout and planning
On-site installation with door-to-door service - Our engineers will assist in installation and troubleshooting until the equipment operates smoothly
Training for your staff and complimentary technical consultation services
Lifetime service support for all devices
